Duplo System 5000 | 2014 | 1.36 Mio

Description:

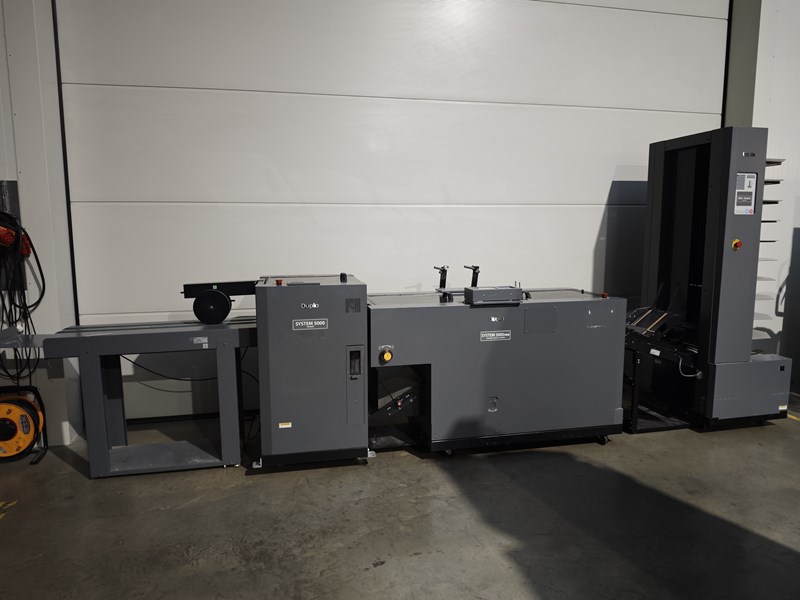

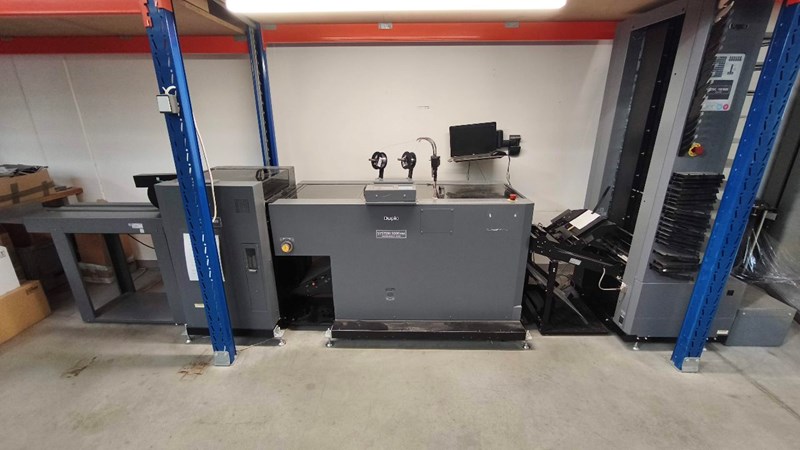

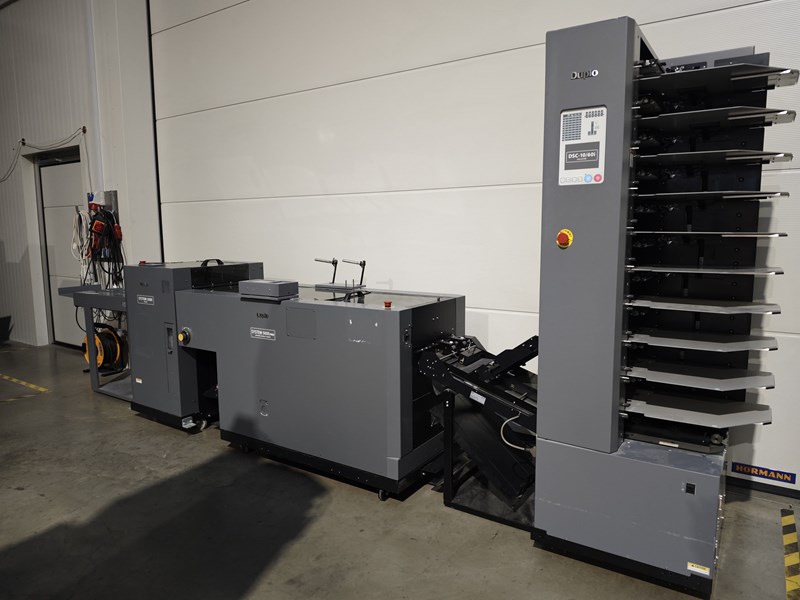

Duplo booklet maker System 5000

offer consists of:

- 1x collators DC-10/60

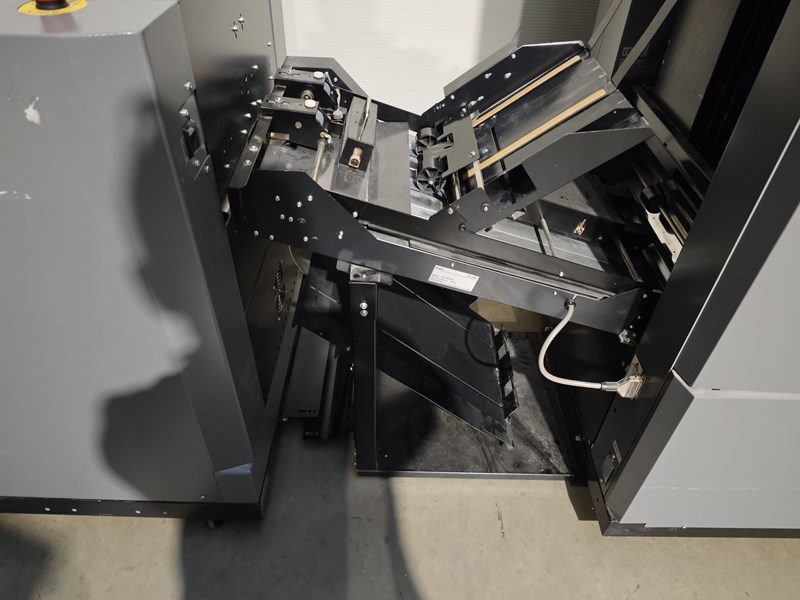

- lifting unit LUL-HM
- bookletmaker DBM-500
- trimmer DBM-500T
- preset kicker DBM-K

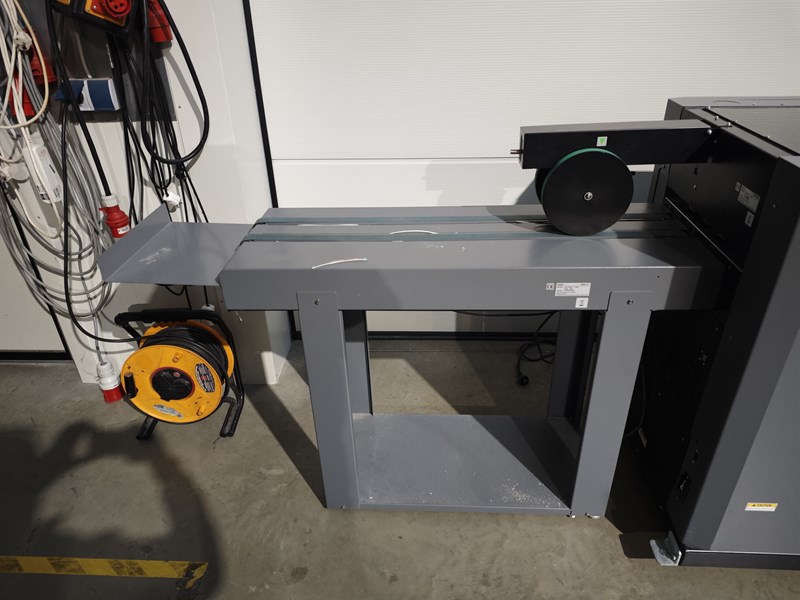

- conveyor DBM-400LS

Duplo System 5000
booklet maker

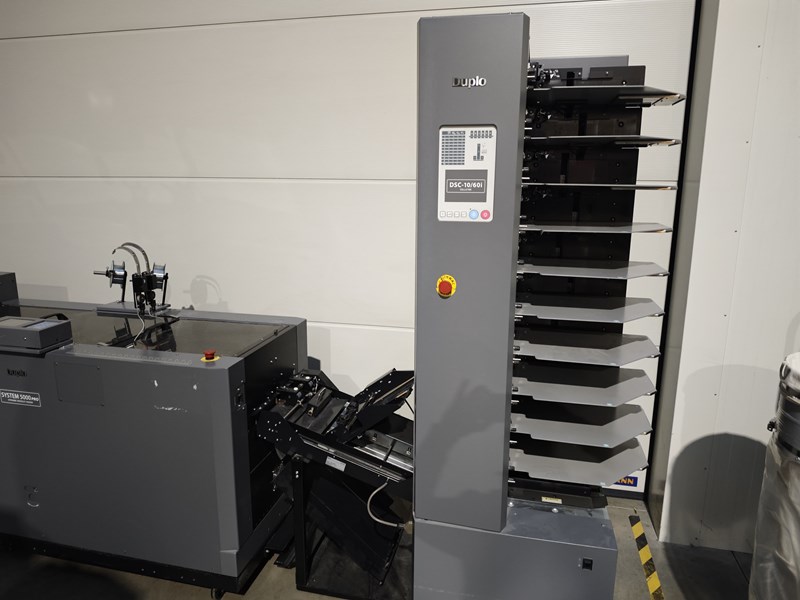

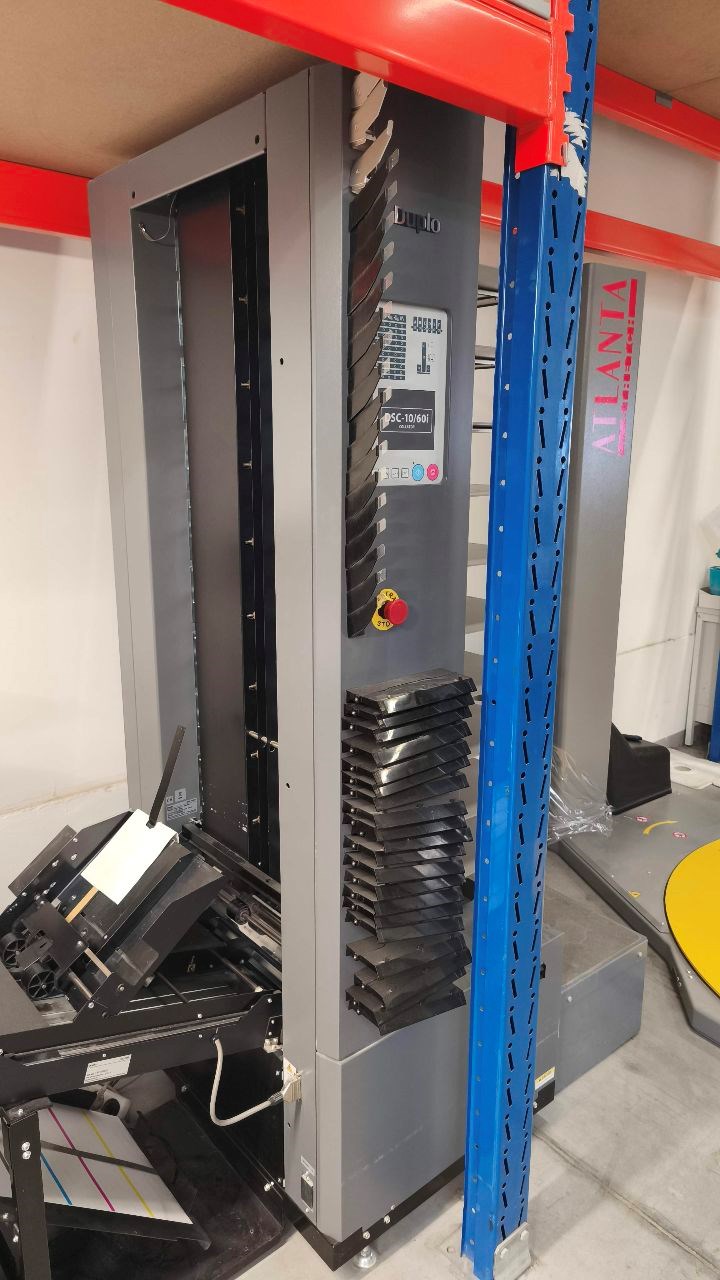

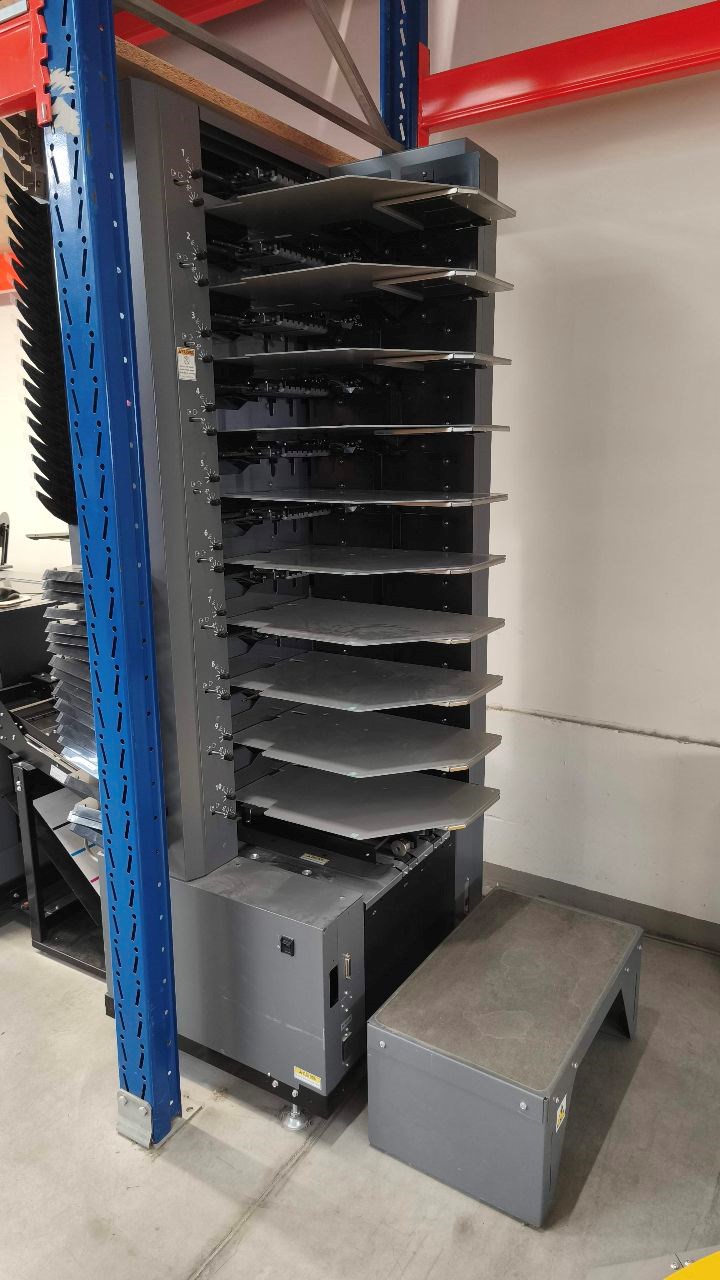

1xDC-10/60: collator
- number of bins: 10
- paper size:
width: min. 120mm, max. 350mm
length: min. 148mm, max. 500mm
- paper weight: 0-300g/sqm
- loading volume: 60mm
- feeding system: belt suction feed system
- conveyance system: roller belt conveyance system
- power supply: 120 to 240 V 50/60 Hz
- power consumption: 9.5A (120 V 60 Hz), 4.5A(220-240V, 50Hz)

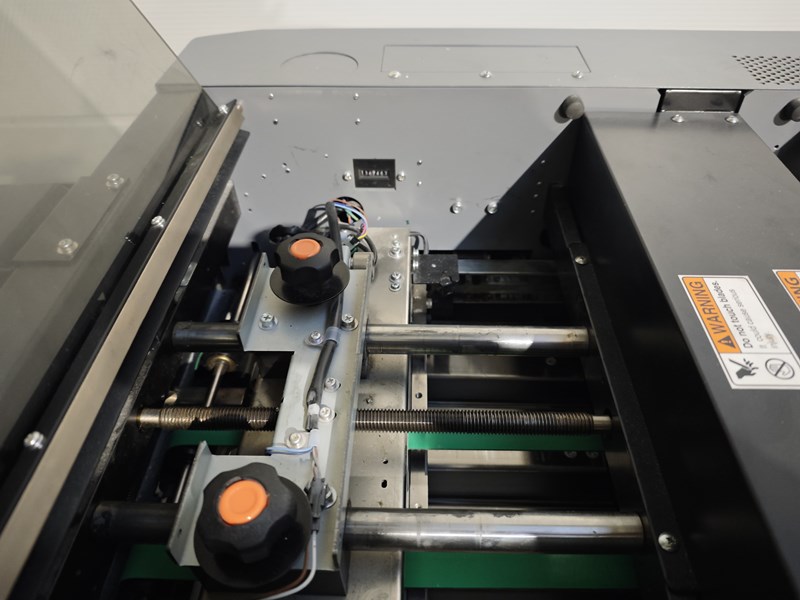

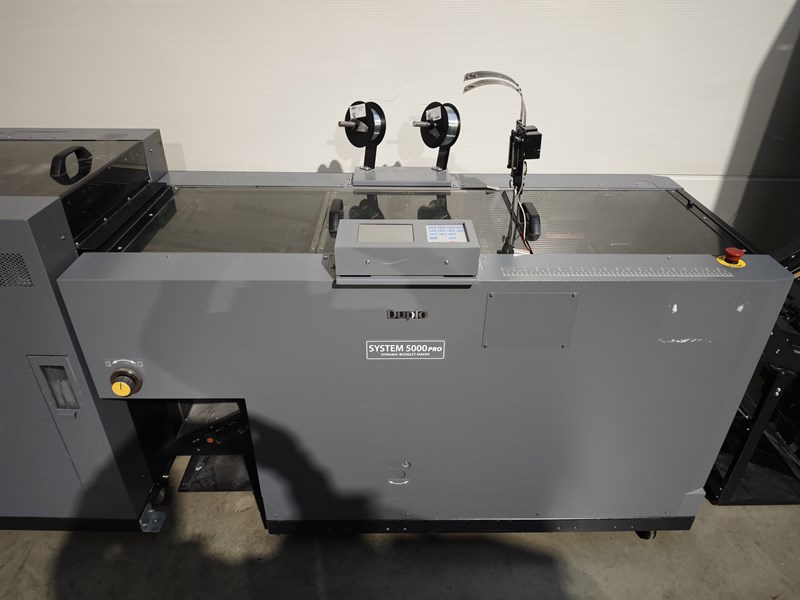

DBM-500: stitcher folder
- paper size: min. 120x170mm; max. 350x500mm
- process speed:
>5000 pcs/h, A5
>4600 pcs/h, A4
>4000 pcs/h, A3
- No. of stitches 0 to 2
- stitch thickness within 5mm
- wire diameter #25 to #27
- folding capacity: below 25 sheets
- dimensions: 2,230 (W) x 865 (D) x 1300 (H)
- ratings: 120 to 240 V 50/60Hz 6.5-3.8A
- weight: 412kg

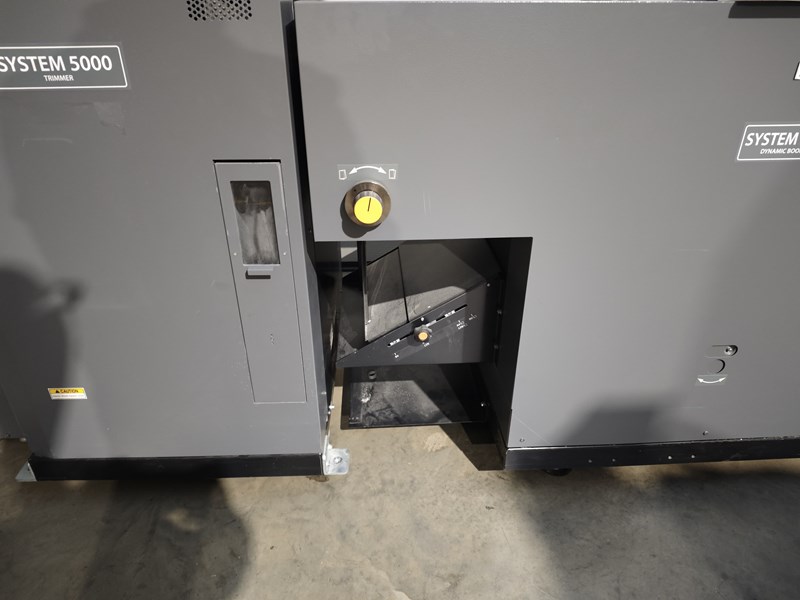

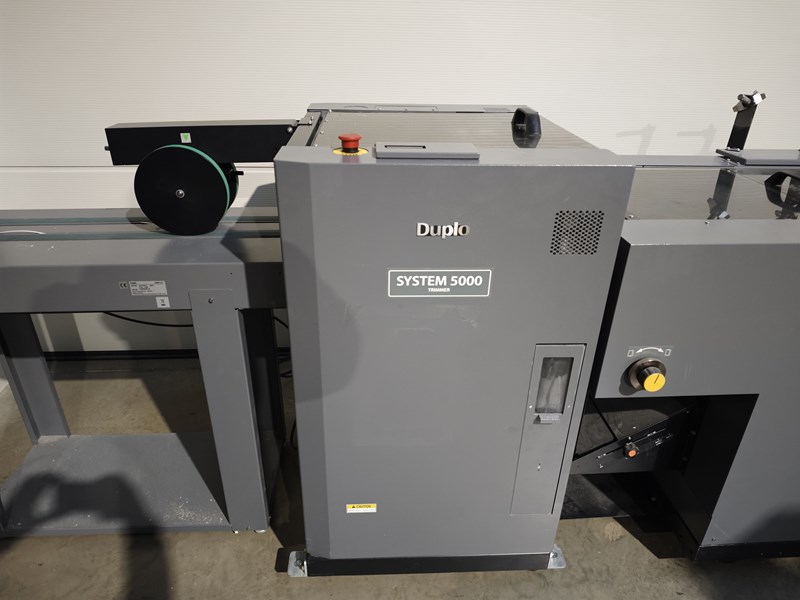

DBM-500T: Trimmer
- booklet size: min. 85x120mm; max. 250x356mm
- trimmed booklet size: min. 75x120mm
- speed: ut to 5000 sets per hour
- power consumption: 120V 690Hz 10A
- dimensions: 700mm x 635mm x 1094mm
- weight: 532 lbs (241kg)



We can also organize the following for you:

packaging, loading, transport ( by ship or plane) including customs
