Horizon AFC-566 F | 2017 | 144,1 Mio

Description:

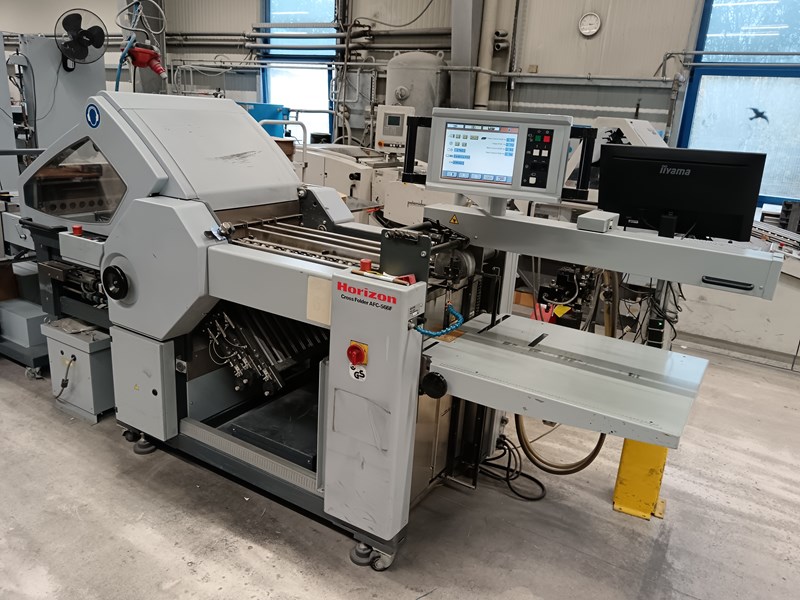

Horizon AFC-566F: Fully Automatic Combination Folding Machine, used

The Horizon AFC-566 F combines high efficiency with easy operation, allowing even inexperienced users to quickly achieve creative folding solutions. With 17 pre-programmed fold types, fully automatic settings, and intuitive Touch&Work technology, you can maximize productivity and handle any challenge.


Folding Units

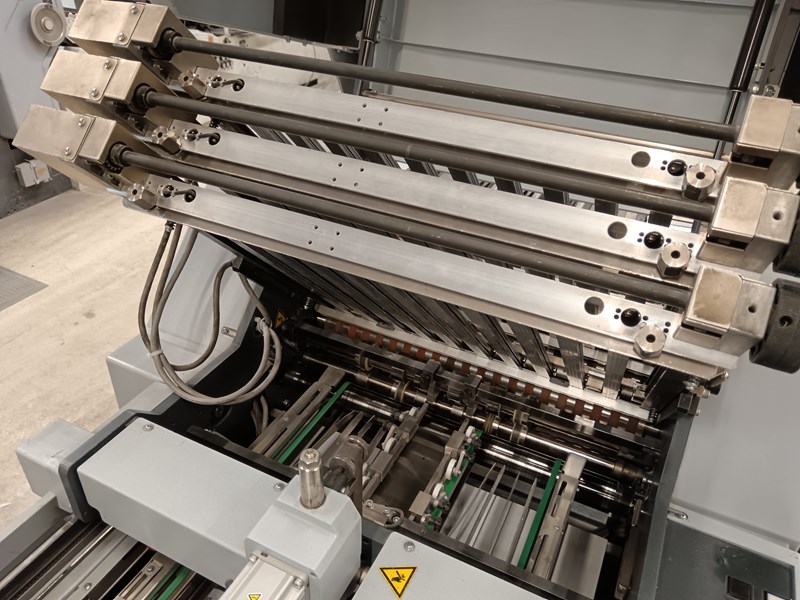

- 1st Folding Unit: 6 folding pockets
- 2nd Folding Unit: Folding knife plus 2 folding pockets


Key Features
- Versatility: Handles a wide range of fold types, from simple parallel folds to complex cross and specialty folds
- Fully Automatic Settings: From feeder to roller gap adjustment
- Touch&Work Technology: For easy and intuitive operation
- 17 Standard Fold Types: For diverse folding options
- Job Memory: Stores up to 200 jobs
- Double Sheet Detection and Sheet Run Monitoring: Ensures high precision
- Creasing and Perforating Device: For additional finishing options
- Quick Setup: Ready in seconds for maximum efficiency




Specifications:

- Paper formats: Maximum size: 558 x 850 mm; Minimum size: 128 x 148 mm
- Paper weights: 40 – 250 g/sqm
- Speed: Maximum: 240 m/min; 30,000 cycles/h in cross fold
- Feeder pile height: 740 m
- Machine dimensions: Main body: 3,100 mm x 1,090 mm x 1,680 mm (LxWxH); Delivery: 1,320 mm x 600 mm (LxW), height variable
- Weight: 1,270 kg
- Power supply: 400 V, 5.6 A, 3.2 kW


All-Inclusive Service Package
We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer.


Sustainable and Economical
Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
