Horizon AFC-566 AKT | 6 Mio | 2021

Description:

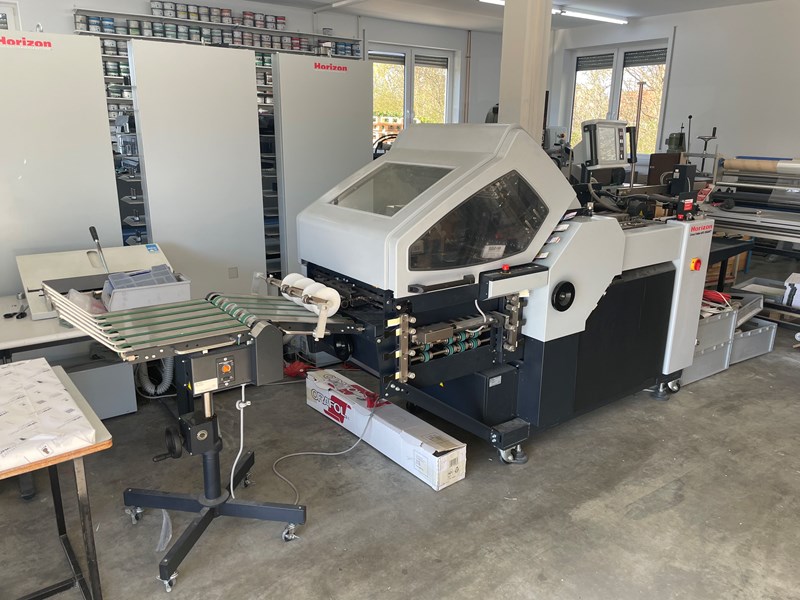

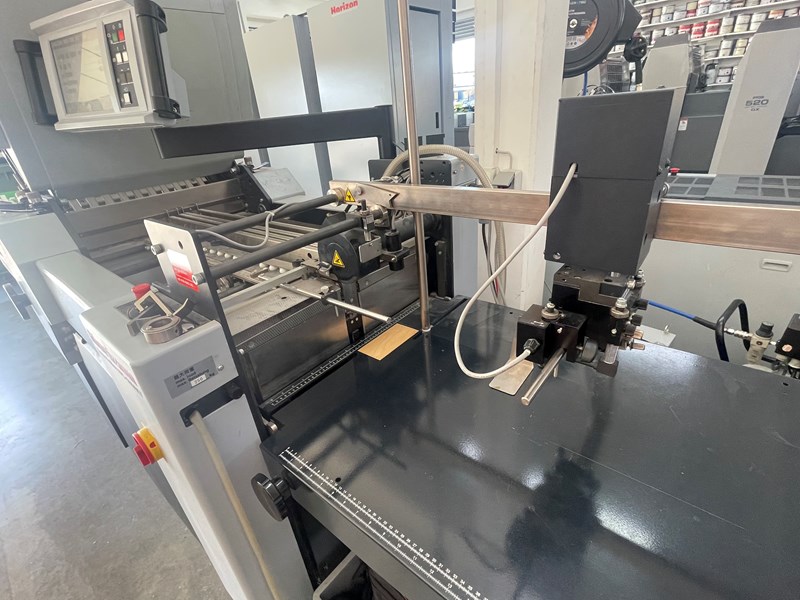

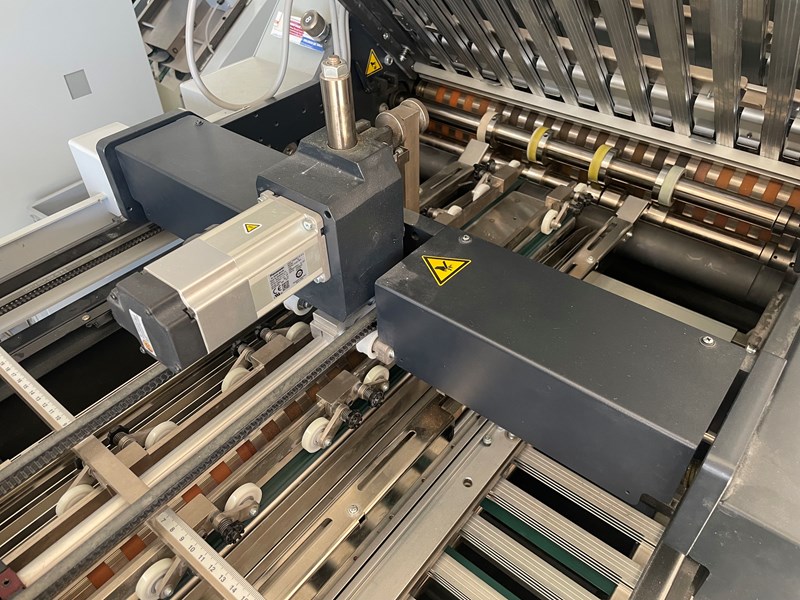

Horizon AFC-566 AKT Automatic Combination Folder, Used

The Horizon AFC-566 AKT is a powerful and versatile automatic combination folder, ideal for producing brochures, inserts, pharmaceutical products, and other demanding folding jobs.

Key Features:
- 6 fold plates, 1 cross-fold, and 2 fold plates under the cross-fold for a variety of folding patterns
- 17 pre-programmed folding patterns, easily selectable via the large color LCD touchscreen
- Fully automatic setup for quick job changes and minimal setup times
- Horizon's advanced rotary suction air feeding system for fast and consistent sheet feeding

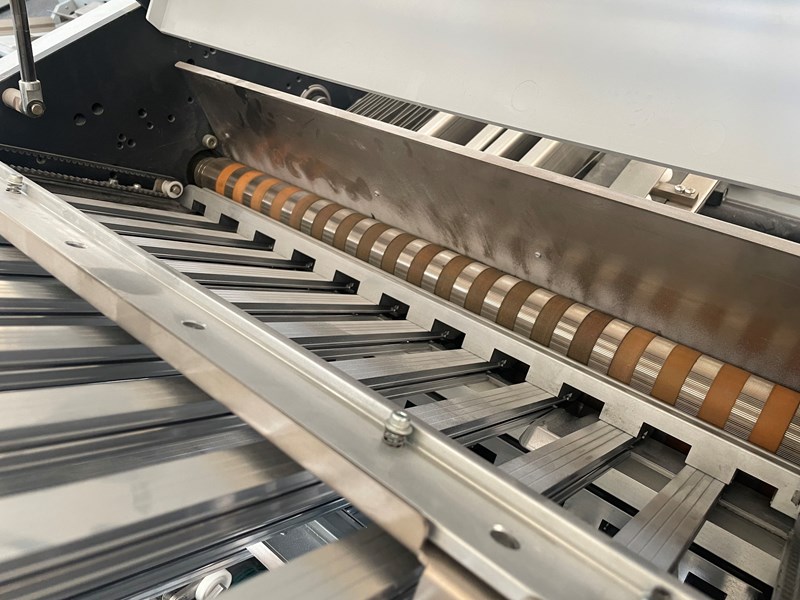

- Folding rollers made of a combination of steel and soft polyurethane for superior grip and sharp, consistent folding

Technical Specifications:
- Max. sheet size: 558 x 850 mm (up to 1,100 mm with optional extension table)
- Min. sheet size: 128 x 148 mm
- Paper weight: 35 to 220 g/m²
- Belt speed: 30 to 230 m/min (cross-fold 180 m/min)
- Production speed: up to 42,000 cycles/h (suction head), 21,000 cycles/h (cross-fold)
- Power supply: 230 V, 50/60 Hz


All-Inclusive Service Package
We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer.


Sustainable and Economical
Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
