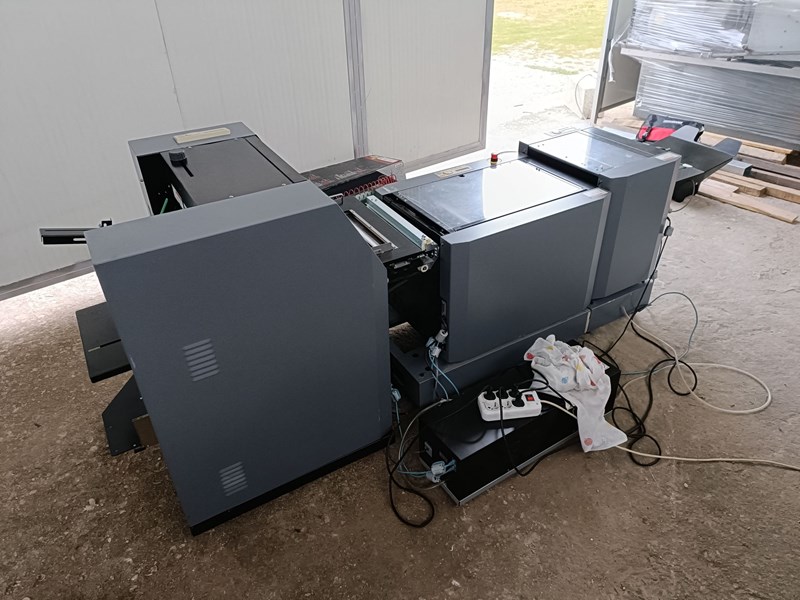

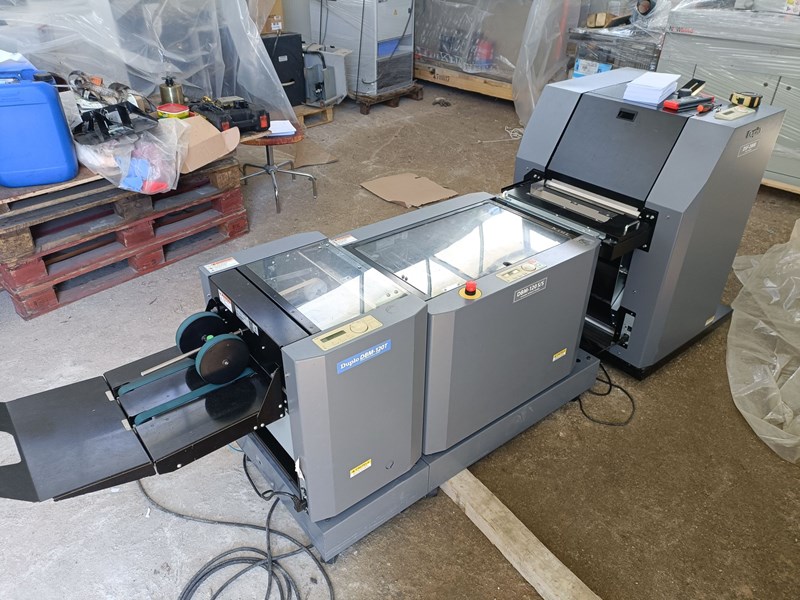

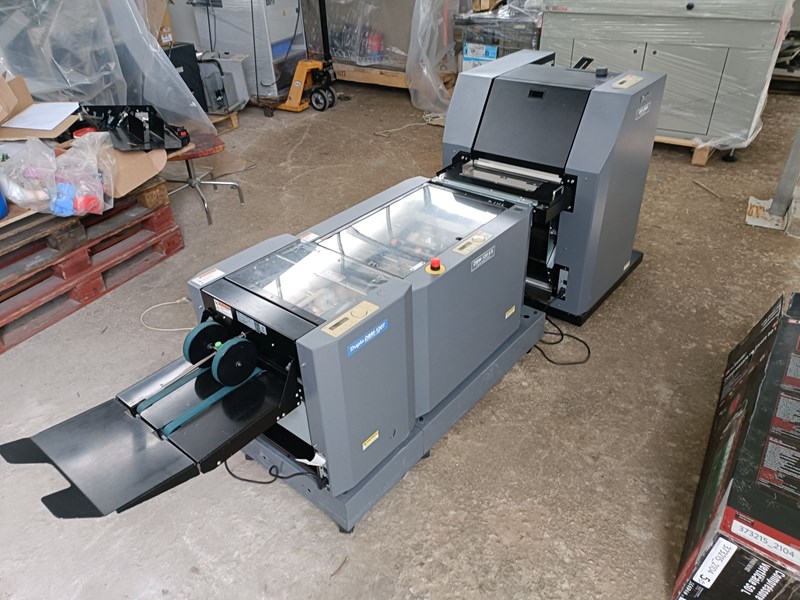

Duplo DSF-2000 DBM-120 DBM-120 T

Description:

DIRECT FROM PRINTING SHOP

We sell this machine on behalf of our customer and try to realize his asking price.
However, we are open to offers from your side.


Offer consists of:

- Feeder Typ DSF-2000 (YOM: 2009)
- Bookletmaker Typ DBM 120 S/S (YOM: 2008)
- Trimmer Typ DBM 120 T


Technical Details:

Digital Feeder Typ DSF-2000
- vacuum feed
- Barcode
- up to 120 sheets/min
- capacity main-station 200 mm; cover-station 60 mm
- weight: 136kg

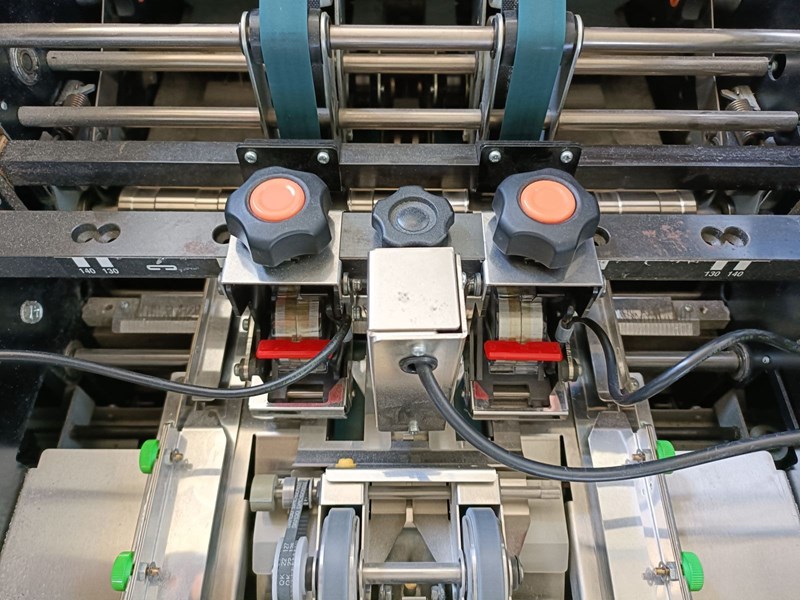

Bookletmaker Typ DBM 120 S/S
-Sheet by Sheet Bookletmaker with digital adjustment of size, stitching heads and folding unit
- 10 default templates and 3 programmable ones
- booklet lenght 200 – 450 mm, width 200 – 320 mm
- edge stitching length 139 – 231 mm, width 200 – 320 mm, min. 148mm x 100 mm (with additional device) max. 320mm x 225 mm
- weight: 83,01kg


Trimmer Typ DBM 120 T
-Frontcutter with automated size adjustment
- booklet size min: 100 mm x 200 mm ; max: 225 mm x 300 mm
- max 2.400 booklets/hour
- weight: 56,25kg


We can also organize the following for you:

packaging, loading, transport ( by ship or plane) including customs
Reference
70124
Category
Booklet Production
Manufacturer
Duplo
Model
DSF-2000 DBM-120 DBM-120T
Year
2008
