Description:

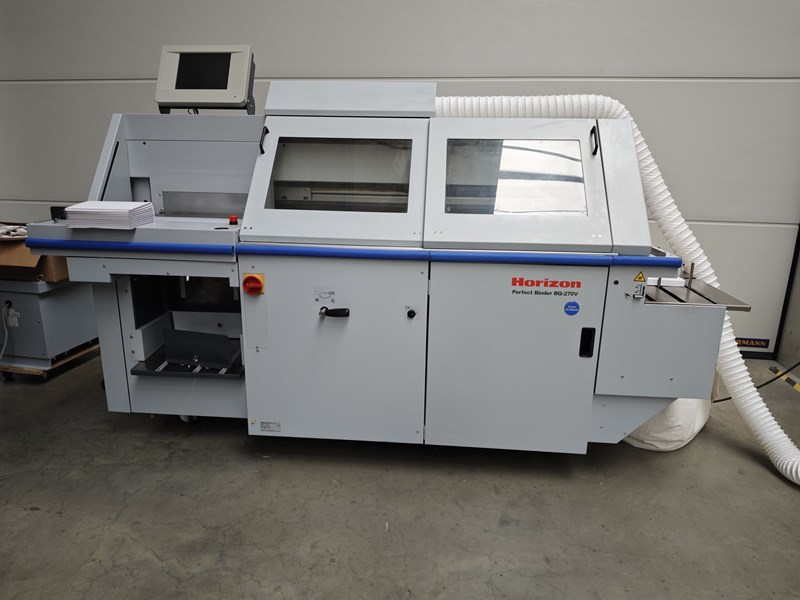

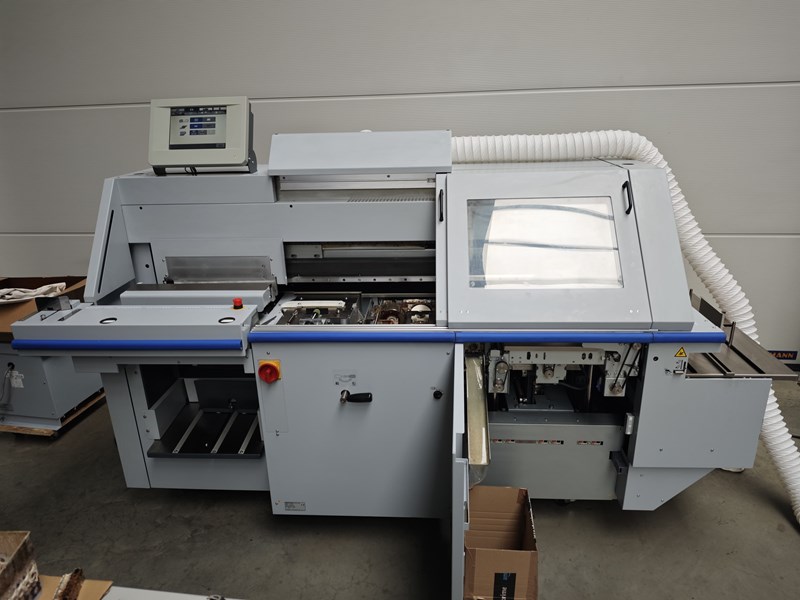

Horizon BQ-270V Single-Clamp Perfect Binder, Used
The professional perfect binder for flawless binding. A fully automatic machine with particularly robust construction, designed for processing hotmelt adhesives. Also suitable for small and ultra-short runs, down to single copies.
The Horizon BQ-270V is a single-clamp automatic binder with automatic cover feeding, delivering consistently high-quality, perfectly bound books with one-person operation. With its Touch&Work technology, Horizon revolutionizes the operation of finishing machines: setup is quick and easy, with minimal changeover times, increasing both flexibility and cost-effectiveness.
Key Features
- Processes books from 1 to 50 mm thick and spine lengths from 135 to 320 mm, with a cycle rate of up to 500 books per hour.
- Standard milling station equipped with additional notching knives and dust brushes.
- Milling depth adjustable up to 3 mm.
- Automatic cover feeder with suction drum for secure, consistent positioning to the book block.
- Standard creasing unit for 4-fold creasing of the cover, which adjusts automatically and precisely. 2-fold creasing is optional.
- Standard measuring station for block thickness: measurement occurs during machine operation, making it significantly faster than measuring in the clamp. Highly efficient for short runs and single-copy production.
Technical Specifications:
- Binding Size: 135–320 mm (spine), 110–310 mm (block, max 320 mm), 1 (3 with creasing)–50 mm thick
- Cover Feeder: Suction drum feeder, loading capacity 70 mm
- Cover Formats: Min. 240 x 135 mm, Max. 660 x 320 mm
- Cover Thickness: 90–300 g/m²
- Creasing: 4-fold positive/negative creasing
- Performance: Max. 500 cycles/hour (actual output depends on block thickness, milling depth, and operator)
- Power Supply: 400 V three-phase, 16 A, 2.7 kW
- Adhesive Type: EVA hotmelt
- Dimensions (mm): 2430 x 910 x 1500
- Weight: 900 kg
