Horizon AFC-746 F | PFU-74 | 2015 | 4 Mio

Description:

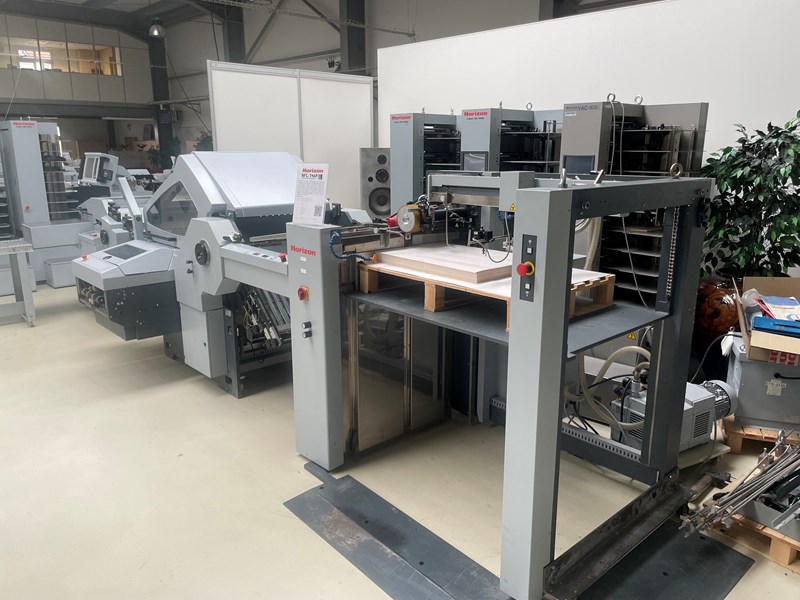

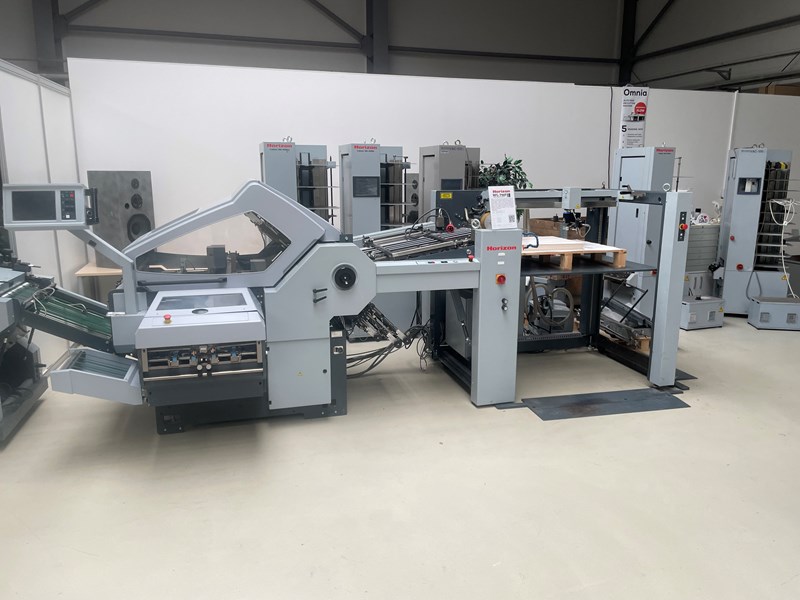

Horizon AFC-746F Folding Machine with Pallet Feeder, used

The Horizon AFC-746F is an advanced combination folding machine designed for efficient paper processing in various formats and weights. This machine has been thoroughly refurbished and offers a premium solution for demanding folding tasks in print shops.

Key features:
- PFU-74F pallet feeder: allows easy handling of large paper stacks directly from the printing press
- User-friendly operation: The machine has a large, color touchscreen control panel for intuitive operation. All common fold formats and paper sizes can be easily selected.
- Advanced automation: Automatic setup includes up to 47 adjustments, including feed, roller gap, pocket fold, and knife fold. This allows for quick changeovers without tools.
- Versatile folding options: With 6 fold pockets, a first knife and 2 pockets under the knife, plus a second knife, the AFC-746F offers flexible folding options.
- New Rollers

Technical specifications:
- Paper formats: Max. 738 x 1,300 mm (pallet feeder); Min. 210 x 297 mm
- Maximum stack height: 1,200 mm when using the pallet feeder
- Paper weight: 35 to 209 g/m²
- Power supply: Three-phase, 400 V, 12.6 A; 5.3 kW
- Dimensions: Length approx. 4,380 mm, Width approx. 1,870 mm, Height approx. 1,680 mm

The Horizon AFC-746F is ideal for print shops looking for a reliable and versatile solution for large format processing. With its advanced technology and high flexibility, it efficiently and precisely meets the requirements of modern production environments.
