Bourg BB-3002 CMT 130

Description:

DIRECT FROM PRINTING SHOP

offer consists of:

- Bourg perfect binder BB-3002 + CMT 130

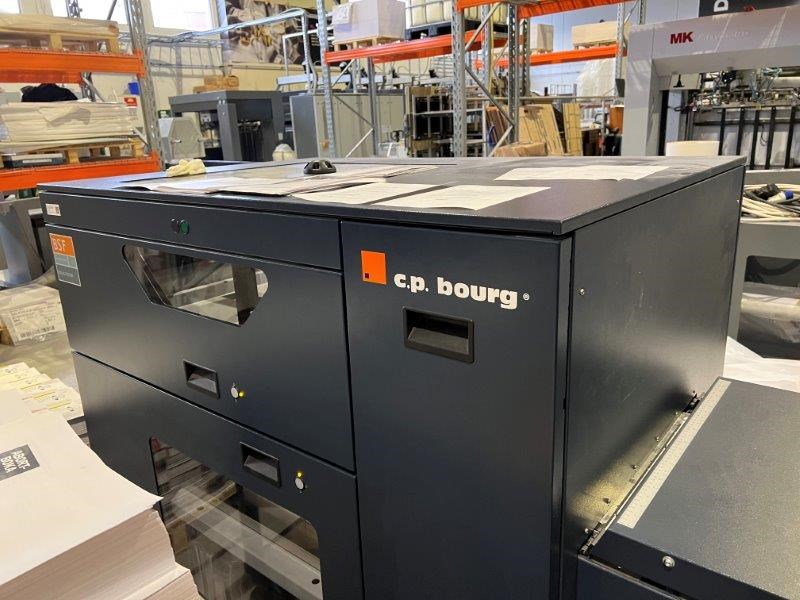

Bourg BB-3002
one-clamp perfect binder

BCMT-130 CMT 130 Trimmer
9580184-AF Bourg BBR BB3002
9580180-AF Bourg BB3002
9583632-AF Bourg BSF-X BY-P 26" 230V
GR 501400 GR - KIT
9433340-AF Bourg Ens.B.Boks ISF + Kabel.interface
9592434-AF Interface feeder bookletmaker IFB docking plate
9592472 Bourg Enhanced Paper Dust Extraction Kit BB3002
9592125 BSF Option-Richo Compatibility Kit
9580296-AF Bourg Preparation Module BPM
CPB0000222 BPM GUI
CPB0000413 BB3202 barcode upgrade
9592483-AF BPM Cut
9580273-AF Bourg Book Compiler
9592125 BSF Option-Richo Compatibility Kit
9592283-AK Barcode reader Kit 1D+2D (Hig Pile and Drawer)

- clamps: 1
- spine gluing: Hotmelt
- sight gluing: hotmelt

- milling section: with extraction
- milling depth: adjustable

- sheet size:
max: 385 x 750 mm; min: 100 x 201 mm

- cover size:
max. 385 x 750mm; min. 100 x 201mm

- book thickness: max. 60mm; min. 1mm

- cover weight range: 80 - 300 g/sqm
- cover pile hight: max. 80mm

- speed: max. 650 cycles/h

dimensions: 2.020 x 2.400 x 1.500mm
- power: 400V/ 50Hz
-weight: 650kg


Challenge MT 130TCA (YOM: 2018)
three-knife trimmer

- untrimmed book size:
Single Book: min. 171 x 178 mm; Multi-Book: min. 178 x 178 mm

- trimmed book size: min. 102 x 148 mm; max. 229 x 305 mm
- book thickness: 2,5 to 51mm

- Binding Maximum Productivity:
- Off-Line: 600 cycles/hour
- In-Line: In-Line digital printer speed

- Trimming Maximum Productivity
- Single Book Mode: 200 cycles/hour
- Multi-Book Mode: 500 cycles/hour

- Milling Depth: 0 to 3 mm


We can also organize the following for you:

packaging, loading, transport ( by ship or plane) including customs
Reference
70107
Category
Perfect Binders
Manufacturer
Bourg
Model
BB-3002 CMT 130
Year
2019
